Bolts, Nuts & Washers

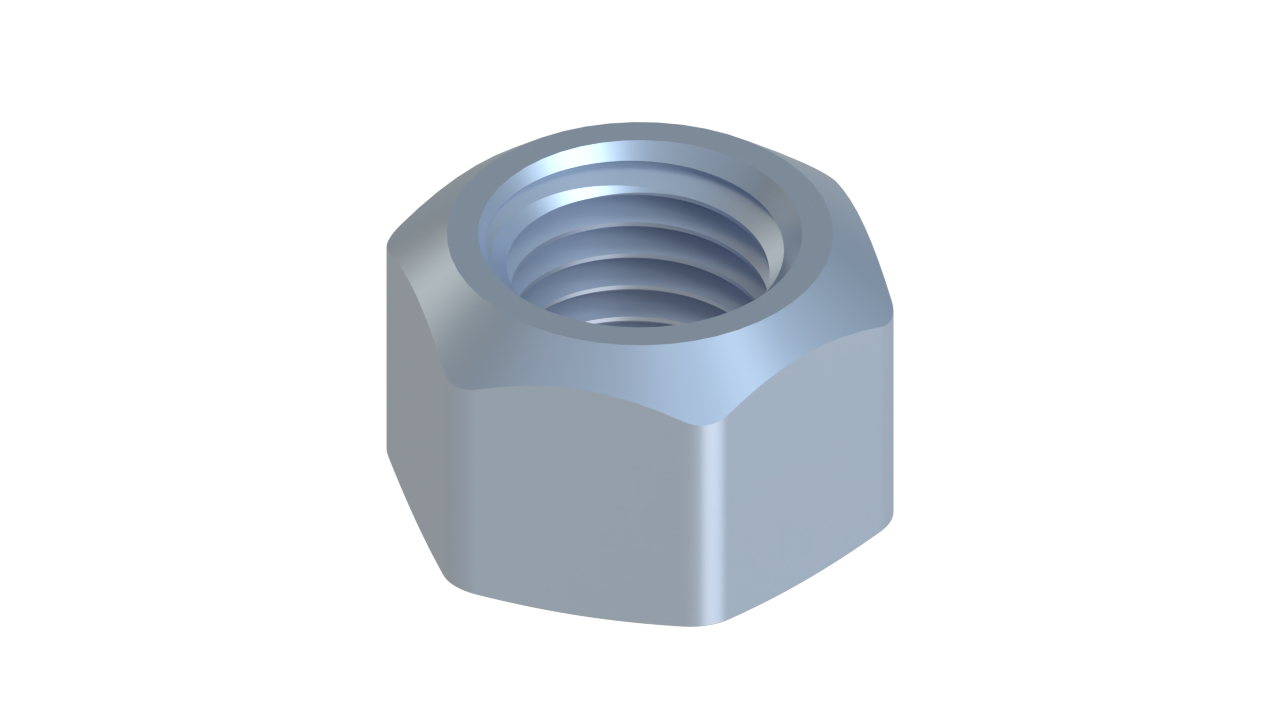

Cone Lock Nut (Type V) CL10 ZP M10
N1001-10
Price on request
Prevailing-torque lock nut with a conical top section that deforms when tightened, providing all-metal locking without nylon for high-temperature applications.
Specifications
Diameter
M10
1/7
Class / Grade
Class 10
Finish
Zinc Plated
Standard
DIN 980
Thread Pitch
1.5mm
Packaging
Pack ID
B
Outer Qty
800
Pallet Qty
64000
Inner Qty
200
Other Cone Lock Nut (Type V) variants (6)
Sign in to see pricing and availability.
 | N1001-12 | Cone Lock Nut (Type V) CL10 ZP M12 |
| N1001-16 | Cone Lock Nut (Type V) CL10 ZP M16 |
| N1001-20 | Cone Lock Nut (Type V) CL10 ZP M20 |
| N1001-22 | Cone Lock Nut (Type V) CL10 ZP M22 |
| N1001-24 | Cone Lock Nut (Type V) CL10 ZP M24 |
| N1001-30 | Cone Lock Nut (Type V) CL10 ZP M30 |
